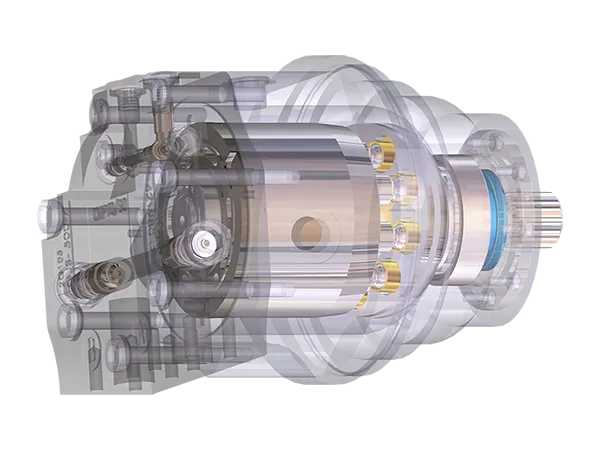

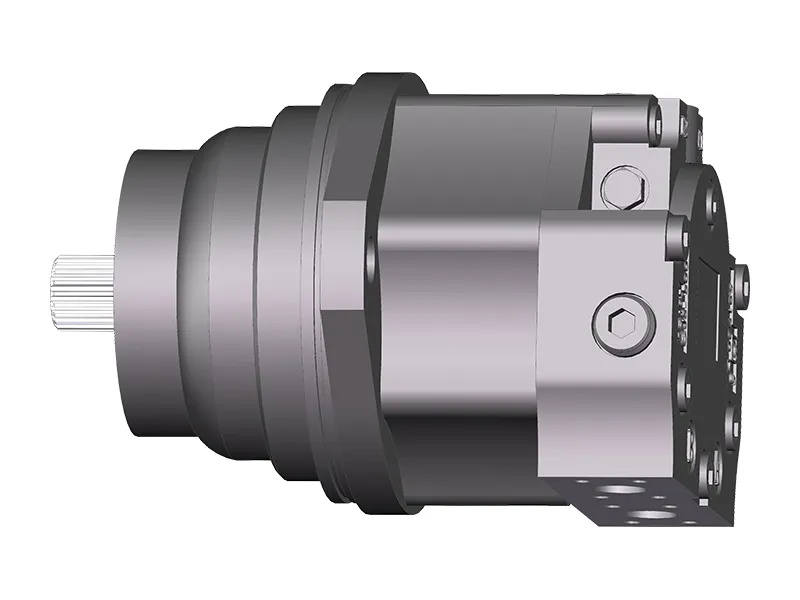

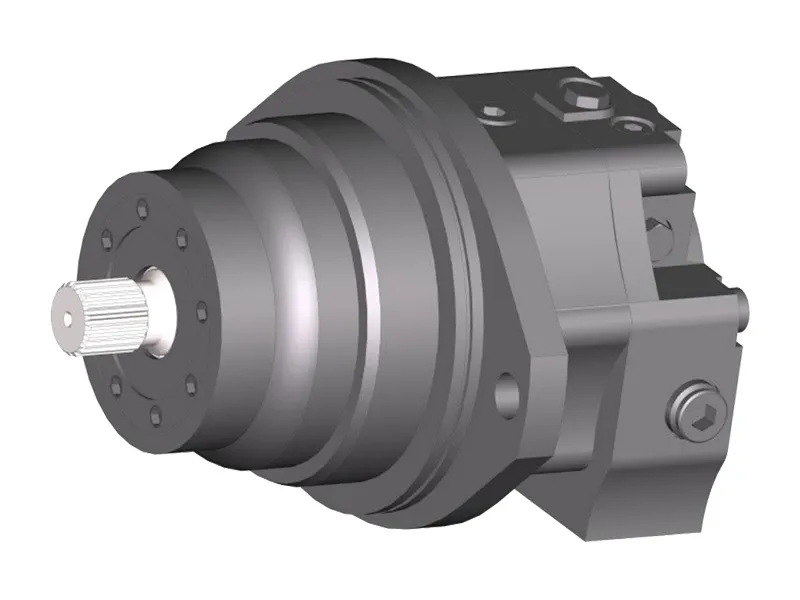

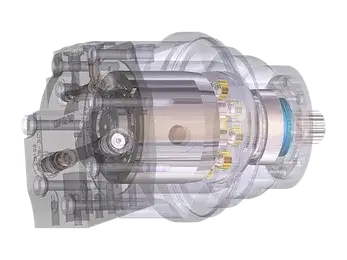

The HMFC closed circuit axial piston motor is a fixed displacement motor specifically designed to pair seamlessly with planetary gear reducers. Thanks to its cartridge-style connection, it offers easy installation and boosts overall system efficiency. Its compatibility with closed-circuit systems, combined with compact structure, stable performance, high efficiency, and low noise, makes it an ideal power solution for applications in construction machinery, metallurgy, mining, and more.
| Model | HMFC30 | HMFC50 | HMFC70 | HMFC90 | HMFC110 | HMFC130 | ||
| Displacement | Rated displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Max. displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 | |
| Rotation Speed | Max. continuous working speed (full load) | r/min | 3200 | 3200 | 3200 | 3000 | 2700 | 2700 |
| Max. working speed (instantaneous) | r/min | 3800 | 3500 | 3200 | 3200 | 2900 | 2900 | |
| Rated speed | r/min | 2500 | ||||||
| Min. continuous working speed | r/min | 500 | ||||||
| Pressure | Rated pressure | Mpa | 35 | |||||
| Max. pressure (instantaneous) | Mpa | 38 | ||||||
| Continuous working pressure (△P) | Mpa | 30 | ||||||
| Max. permissible housing pressure (absolute) | Mpa | Constant 0.25 Peak value 0.5 | ||||||
| Torque | Continuous output torque (under continuous working pressure) | Nm | 143 | 248 | 334 | 430 | 526 | 621 |
| Max. output torque | Nm | 167 | 278 | 390 | 502 | 613 | 725 | |
| Power | Max. power | kW | 56 | 93 | 131 | 157 | 180 | 212 |
| Temperature | Permissible housing temperature | ℃ | -40 to 50 | |||||
| Max. working temperature of oil tank | ℃ | 80 | ||||||
| Weight | Hydraulic motor weight (without hydraulic oil) | kg | 30 | 31 | 37 | 38 | 45 | 46 |
Speak directly to our experienced engineer by emailing or giving a call. Alternatively you can fill the form and we will be in touch with you as soon as possible.
A hydraulic motor converts fluid pressure into rotational motion. Pressurized fluid from a hydraulic pump moves the motor’s gears, pistons, or vanes, turning the motor's output shaft.
The three main types of hydraulic motors are gear motors, piston motors, and vane motors.
In a piston hydraulic motor, pistons are connected to a shaft via connecting rods. When fluid enters the motor, the pistons move up and down in the cylinder, causing the shaft to rotate. Piston motors are commonly used in construction equipment because they generate high torque.
There are two common types of piston hydraulic motors: axial piston motors and radial piston motors.
An axial piston motor is one of the most commonly used types of hydraulic motors. It works by using a series of pistons in a cylinder block to create linear motion, making it ideal for hydraulic systems that require high torque, such as construction equipment.
