Portable Hydraulic Tester

Portable Hydraulic Tester

Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system

A simple and reliable way to diagnose hydraulic system issues on-site is our portable hydraulic tester. It is your go-to tool for identifying faulty components quickly and accurately. With the ability to measure pressure, flow, and temperature simultaneously, and monitor replenishment pressure in closed systems, you’ll have all the critical data you need at your fingertips. Just check the battery indicator to ensure the lithium battery is charged, and you’re ready to go. A 220V household charger is included for easy recharging.

Request a Quote

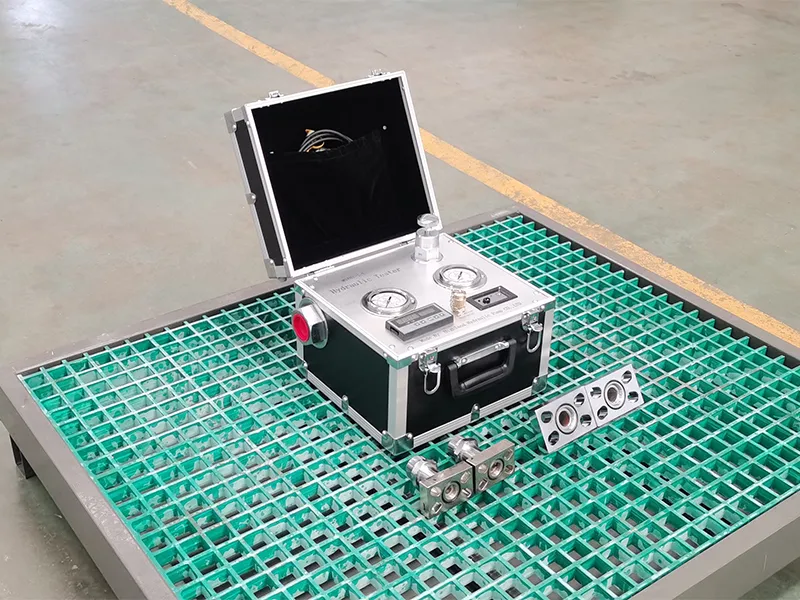

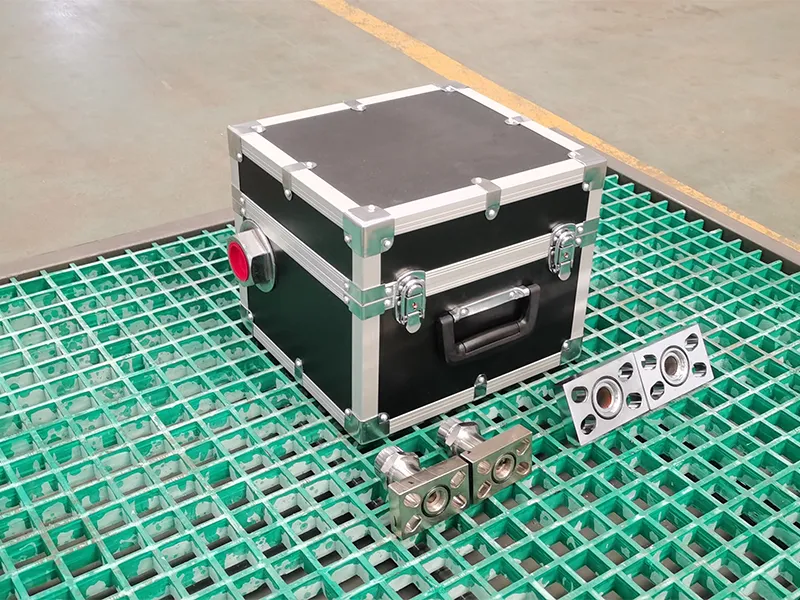

Portable Hydraulic Tester

Our MYHT Series Portable Hydraulic Tester is specifically designed for testing hydraulic pumps, motors, valves, and overall system diagnostics. It’s incredibly user-friendly, so you won’t need any specialized training. This tester is the perfect tool for preventive maintenance, technicians can safely conduct online diagnostics while equipment is operating, saving you time and reducing downtime.

Built for on-site use, this portable tester provides real-time monitoring of key parameters, helping you catch issues early and keep your equipment running smoothly.

Ready to simplify your hydraulic maintenance? Contact us today to learn more about how our portable tester can make a difference in your operations.

Key Parameters

  • Flow up to 800 lpm
  • Pressure up to 420 bar
  • Unidirectional / bi-directional loading

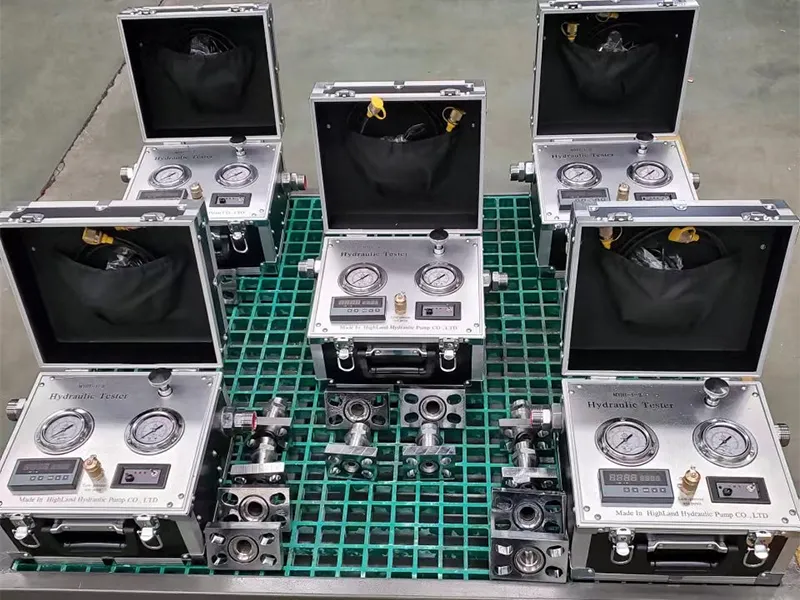

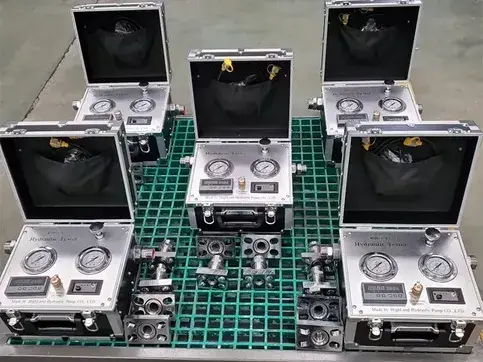

Portable Hydraulic Tester

Typical Applications

  • Construction Equipment: Diagnoses hydraulics in excavators, loaders, and cranes.
  • Agricultural Machinery: Tests pumps and motors in tractors and harvesters.
  • Industrial Systems: Troubleshoots presses and injection molding machines.
  • Mining Equipment: Monitors hydraulics in drills and dump trucks.

Features

  • Precision: Measures flow, pressure, and temperature with accuracy.
  • Safety: Allows bi-directional hydraulic oil flow with single-direction loading, protecting both operators and equipment.
  • Efficiency: Enables quick online testing of hydraulic equipment, pumps, motors, valves, and cylinders with simple connections.
  • Portability: Lightweight, compact, and easy to carry with a sleek design that’s also easy to clean.
  • Power Supply: Equipped with a rechargeable 12V lithium battery, offering high capacity and long life.

Model Options

  • MYHT-1-2: Single-direction loading with bi-directional oil flow, suitable for flow rates of 5-200 L/min.
  • MYHT-2-2: Dual-direction loading, supporting pressures up to 42 MPa.
  • MYHT-1-5: Single-direction loading, pressure up to 42 MPa, and flow rates ranging from 10-500 L/min.
  • MYHT-1-7: Single-direction loading with pressure up to 42 MPa, flow rates from 15-700 L/min, and a temperature display range of 0-150°C.

Technical Data

Model MYHT-1-2 MYHT-1-4 MYHT-1-5 MYHT-2-4 MYHT-1-7
Max. flow (lpm) 200 400 500 400 800
Max. pressure (bar) 420 420 420 420 420
Dimension (mm) 295×265×210 295×265×210 295×265×210 295×265×210 310×285×261
Weight (kg) 6.1 8.8 10.2 10 14
Find your hydraulic solution from product selection, customized design to after-sales service.

Speak directly to our experienced engineer by emailing or giving a call. Alternatively you can fill the form and we will be in touch with you as soon as possible.

landhydraulic89@gmail.com
+86-13805406089
View Hydraulic Products By Category

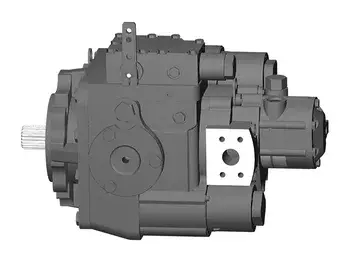

    • Hydraulic Pump
