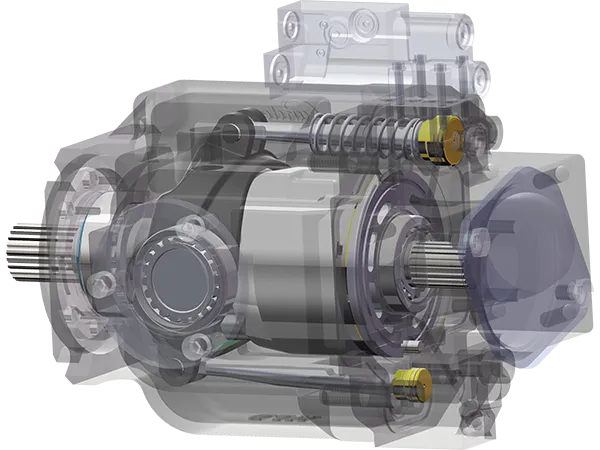

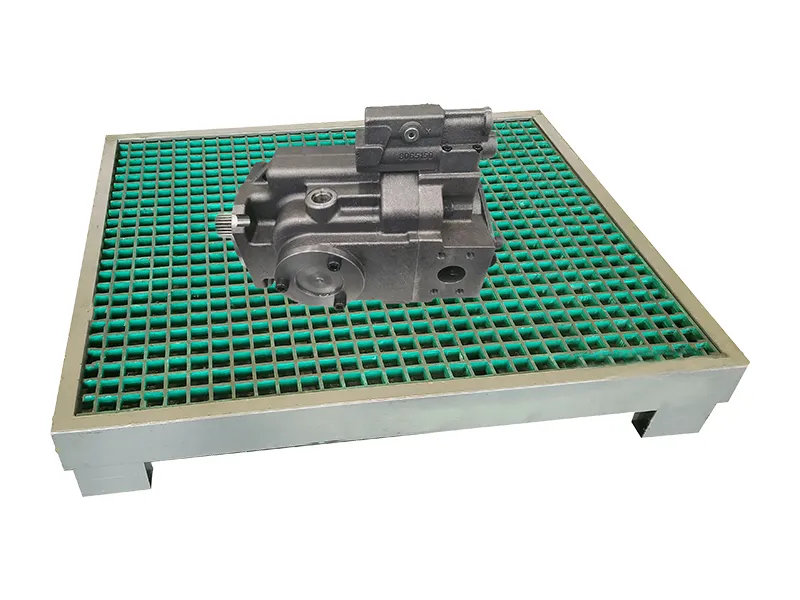

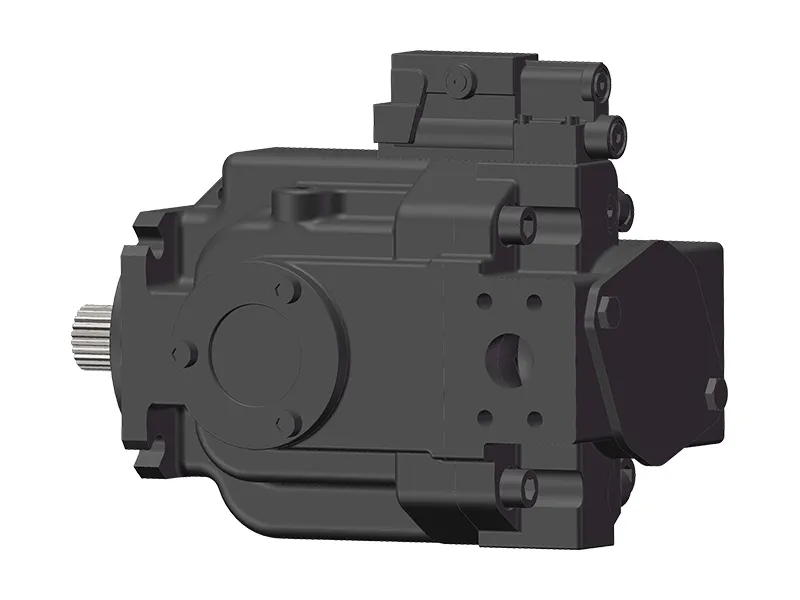

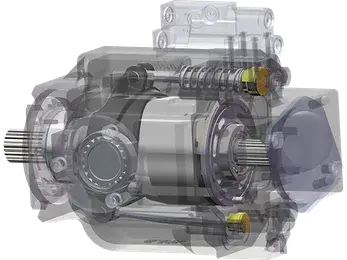

Get the high-efficiency, open-circuit piston pumps you need for powerful and reliable performance. The HF open circuit axial piston pump is designed based on our closed-circuit pump technology, using the same core components as our HPV series pumps of equivalent displacement. Currently available in 70 ml/r and 90 ml/r displacement options, we’re also ready to develop other displacements based on your needs. Whether for construction machinery, agricultural and forestry equipment, or industrial machines, the HF open circuit axial piston pump provides the hydraulic power to keep your equipment running efficiently.
| Model | HF70 | HF90 | ||
| Displacement | Rated displacement | 70 | 90 | |
| Max. displacement | ml/r | 69.8 | 90.5 | |
| Rotation Speed | Max. continuous working speed (full load) | r/min | 3200 | 3000 |
| Rated speed | r/min | 2500 | ||
| Min. continuous working speed | r/min | 500 | ||
| Pressure | Rated pressure | Mpa | 25 | |
| Max. pressure (instantaneous) | Mpa | 28 | ||
| Continuous working pressure (△P) | Mpa | 23 | ||
| Max. permissible housing pressure (absolute) | Mpa | Constant 0.25 Peak value 0.5 | ||
| Torque | Continuous output torque (under continuous working pressure) | Nm | 260 | 334 |
| Max. output torque | Nm | 312 | 402 | |
| Power | Continuous power | kW | 68 | 87.5 |
| Max. power | kW | 105 | 126 | |
| Temperature | Permissible housing temperature | ℃ | 80 | |
| Max. working temperature of oil tank | ℃ | 70 | ||
| Angle | Max. swash plate angle | ° | +18° | |
| Weight | Hydraulic pump weight (without hydraulic oil) | kg | 45 | 46 |
Speak directly to our experienced engineer by emailing or giving a call. Alternatively you can fill the form and we will be in touch with you as soon as possible.
A hydraulic pump works by using mechanical energy to pressurize fluid within a closed system. The pressurized fluid is then used to power machinery like excavators, presses, and lifts.
There are two main types of hydraulic piston pumps: axial and radial. Both types can be fixed or variable displacement. A fixed displacement pump moves a set amount of fluid each cycle, while a variable displacement pump can adjust the amount of fluid moved per cycle.
Choosing the right hydraulic pump depends on an assessment of your application. Consider the required pressure, flow rate, speed, horsepower, and the type of fluid used. Radial piston pumps can handle a variety of fluids, including mineral oil and water-glycol hydraulic fluids, while axial piston pumps are preferred for high-pressure applications.
Compared to gear pumps and vane pumps, piston pumps offer distinct advantages:
Overall, piston pumps stand out for their high pressure, compact structure, efficiency, and ease of flow adjustment, making them widely used in high-pressure, high-flow applications such as hydraulic presses, construction machinery, and marine equipment.
